BOARD

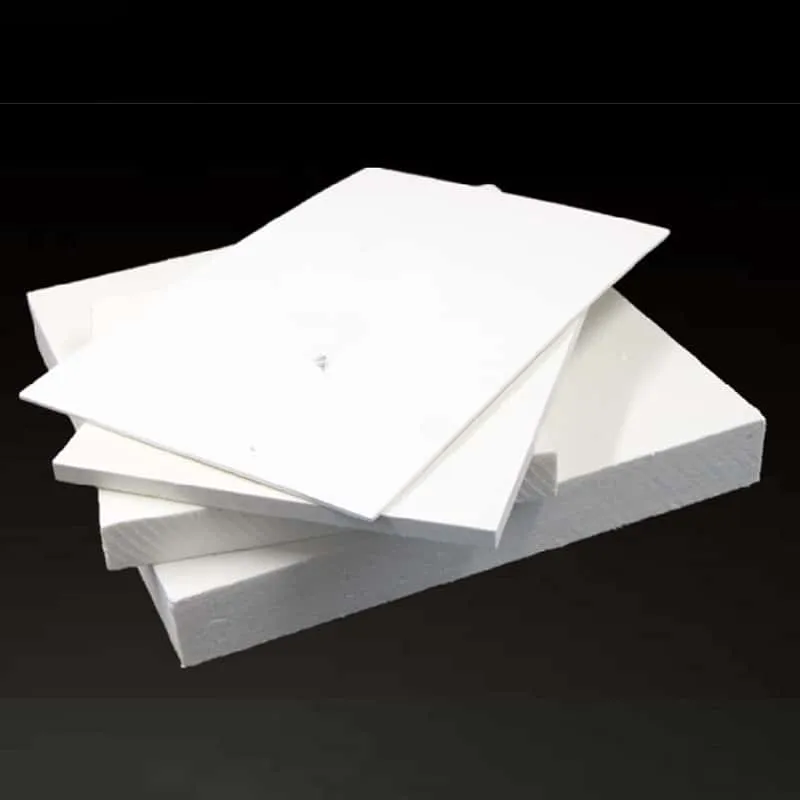

ceramic-fiber-board-tuya
ceramic-fiber-board-tuya

Board is manufactured in a wet forming process using ceramic fiber bulk and binders. Board is designed for insulation applications experiencing vibration, mechanical stress and erosive forces. Board can reduce energy costs and cycling times due to high insulating capability, as well as serving to protect refractory surfaces from thermal shock and chemical attack.

Parameter

Features

Excellent thermal shock resistance

Can be machined, cut and shaped easily

High rigidity and light weight

Low thermal conductivity

Low heat storage


Typical Applications

Furnace hot face lining in petrochemical furnace

Furnace hot face lining in ceramic kiln

Board over blanket hot face lining

Back-up insulation to brick & castable

Expansion joints


Parameter2

EscriptionSTD BOARDHP BOARDHA BOARDHZ BOARD
Classification Temperature (℃)1260126013501430
ColorWhiteWhiteWhiteWhite
Density (kg/m³)250/300/360250/300/360300/360300/360
Modules of Rupture (MPa)≥0.3≥0.3≥0.3≥0.3
Compressive Strength (MPa, 10% relative deformation)0.15/0.25/0.30.25/0.30.25/0.30.25/0.3
Loss of Ignition (%)≤6≤6≤6≤6
Permanent Linear Shrinkage (%)1000℃ x 24h ≤3.01000℃ x 24h ≤3.01100℃ x 24h ≤3.01350℃ x 24h ≤3.5
Thermal Conductivity (W/m·K)
400℃0.080.070.070.07
600℃0.110.100.100.09
800℃0.140.140.130.13
1000℃0.190.190.190.18
