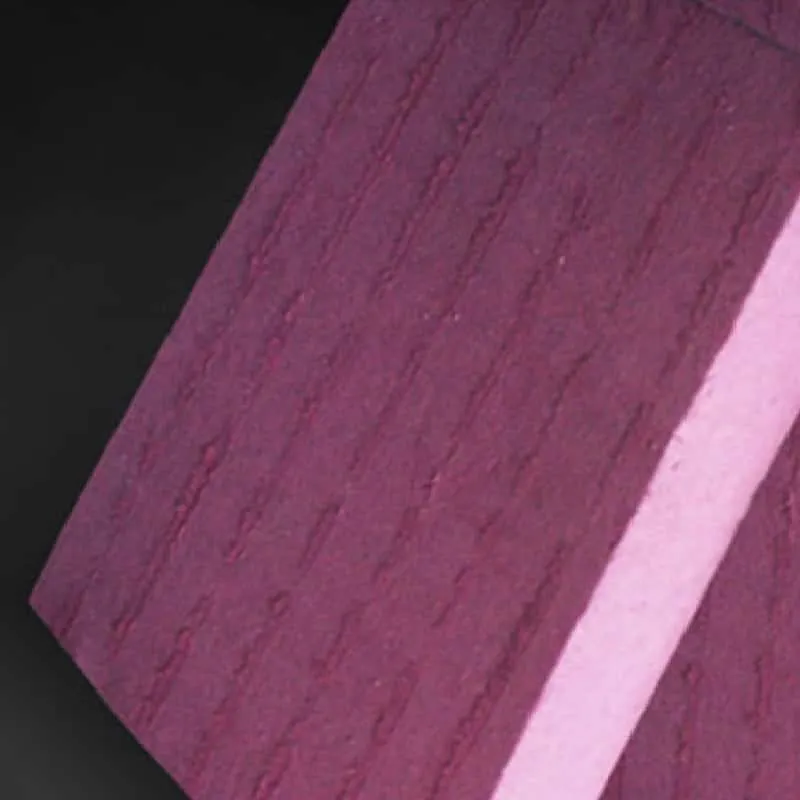

1600 High Temperature Alumina Fiber Veneer Module

Alumina fiber veneer module is a refractory and thermal insulation product made from alumina fiber, and is used as a refractory insulation product in high-temperature kilns with a temperature of 1250°C to 1450°C.

Inquiry now Contact us

Parameter

Alumina Fiber Veneer Module / Polycrystalline Wool Veneer Module

Alumina fiber veneer module is made of alumina fiber through dry or wet processing, and is used as a refractory insulation product in high temperature kilns with a temperature of 1250°C to 1450°C. Typical applications are cold-rolled stainless steel (silicon steel) continuous annealing lines, walking beam heating furnaces, ring heating furnaces, high-temperature ceramic kilns, crucible boilers, rotary hearth furnaces, reheating furnaces, etc.

Features

Excellent heat resistance,

The use temperature can reach 1500℃

Excellent thermal insulation performance

High rebound rate, the lining is dense and uniform after construction

Easy to paste, easy to install and construct

Parameter2

Description		Module 24			Module 26
Classification Temperature (ºC )		1316			1430
Color		White			White
Shot Content (%)		≤10			≤10
Density (kg/m³)		160	192	240	160	192	240
Permanent Linear Shrinkage (%)		1200ºC x 24h ≤3			1400ºC x 24h ≤3
Thermal Conductivity (W/m·K)
400ºC		≤0.09			≤0.09
600ºC		≤0.14			≤0.14
800ºC		≤0.20			≤0.20
1000ºC		-			≤0.28
Standard Size (mm)	Length	305
	Width	305
	Thickness	76-305
